Description

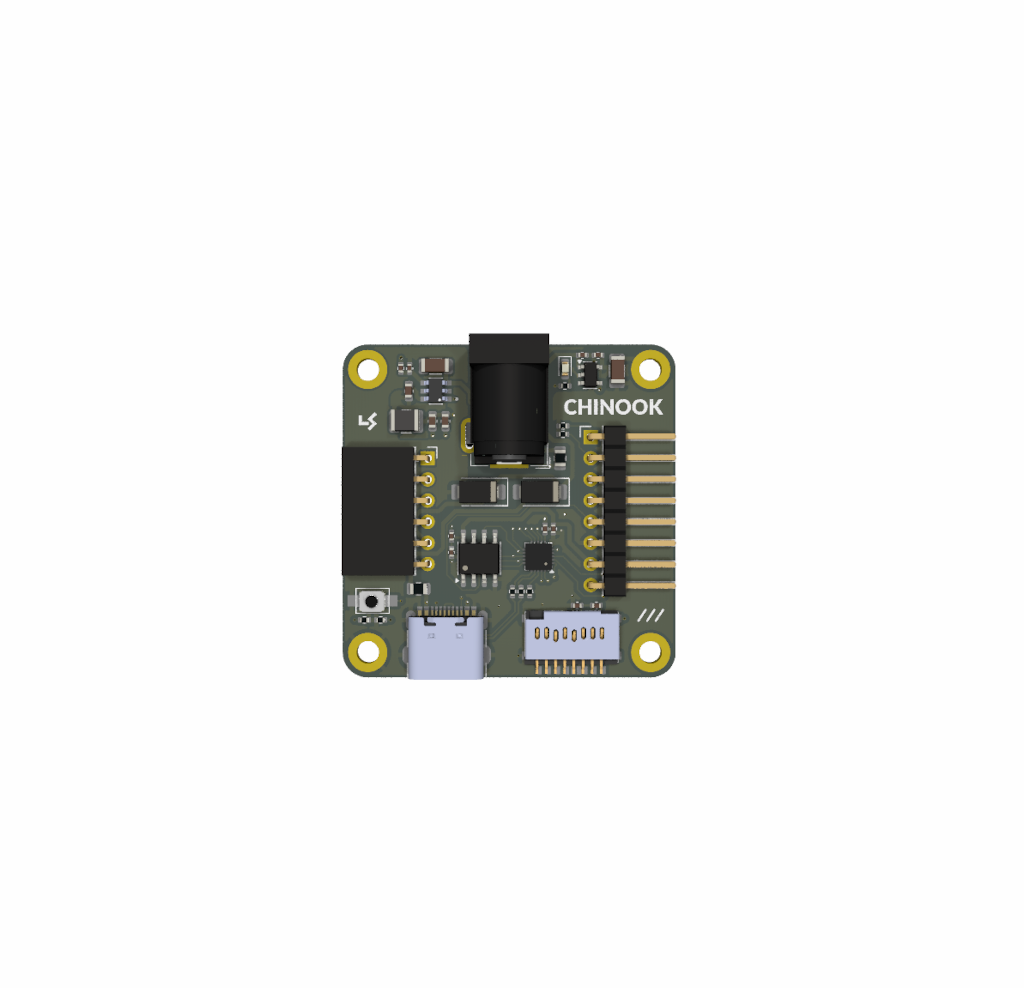

Chinook is a low-cost headless metacomputer intended to emulate a SOC and run Linux (very slowly).
Features
- CH32V003 MCU (QingKe 32-bit RISC-V2A processor @ 48MHz)
- 64Mbit (8MB) SPI PSRAM
- MicroSD slot (SPI mode)

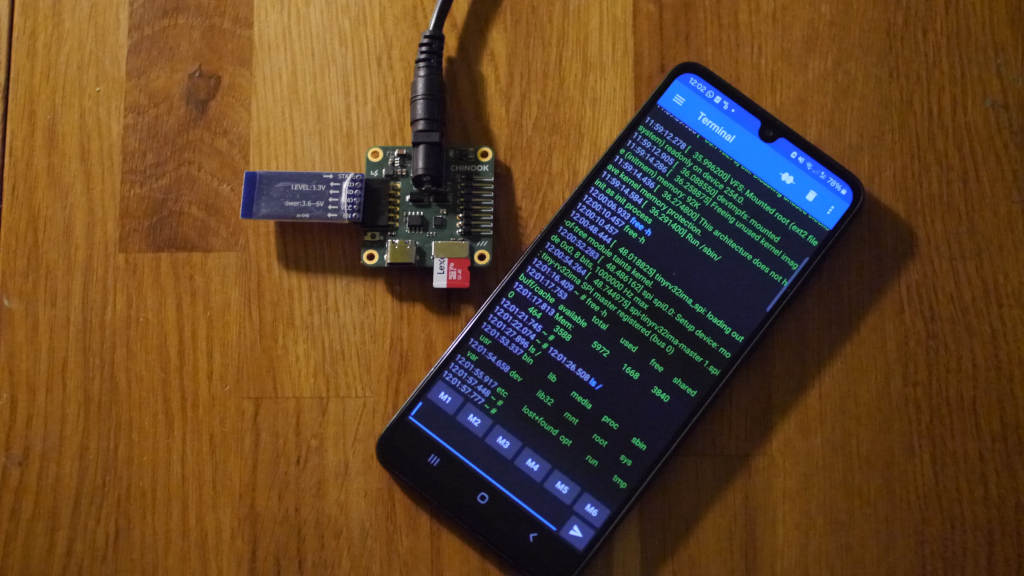

- Socket for optional bluetooth UART module (HC-05/06) or USB-UART module to access console
- 4 GPIOs
- USB-C for firmware updates and power or barrel jack (2.1mm, center positive, 9-15V) for power
- 40mm x 40mm board dimensions (V0)
Resources
- Open-source schematics and firmware will be made available on GitHub
- Based on the linux-ch32v003 project.
