Zwölf Wolfszahn Adapter

Description

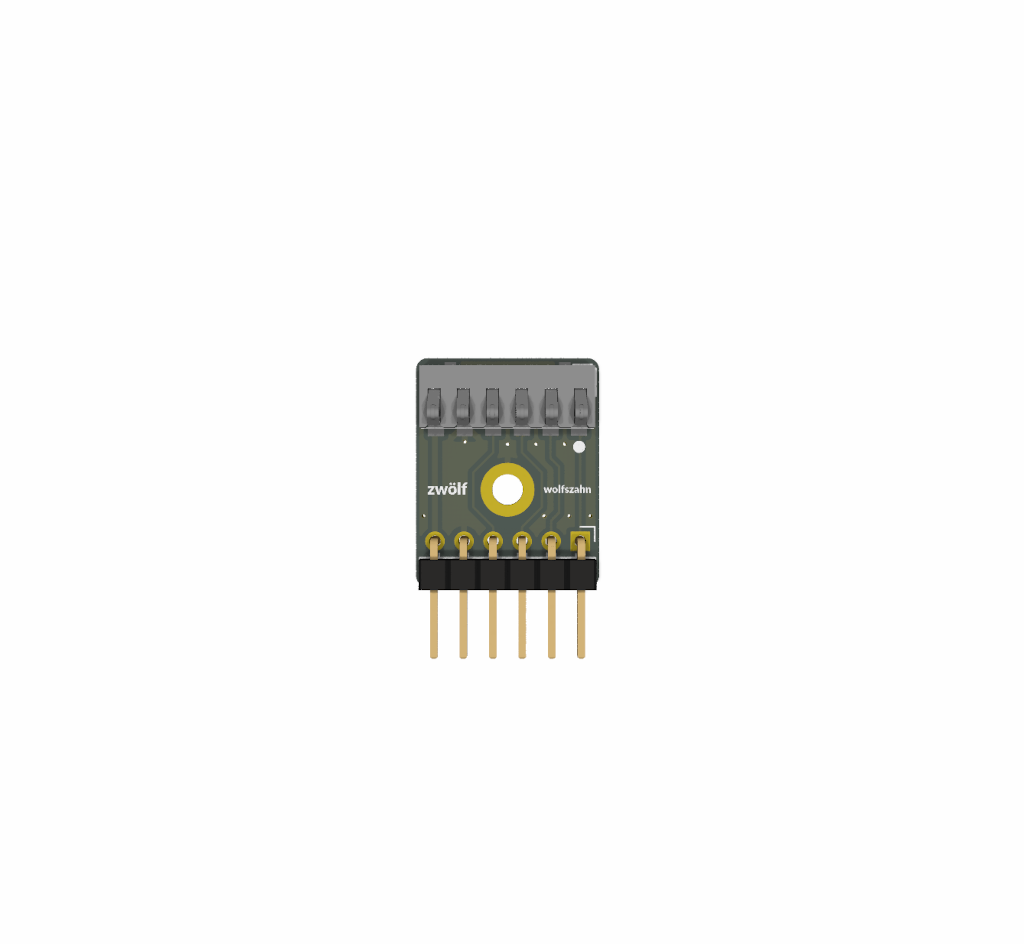

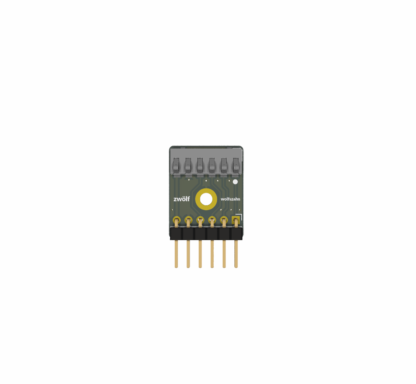

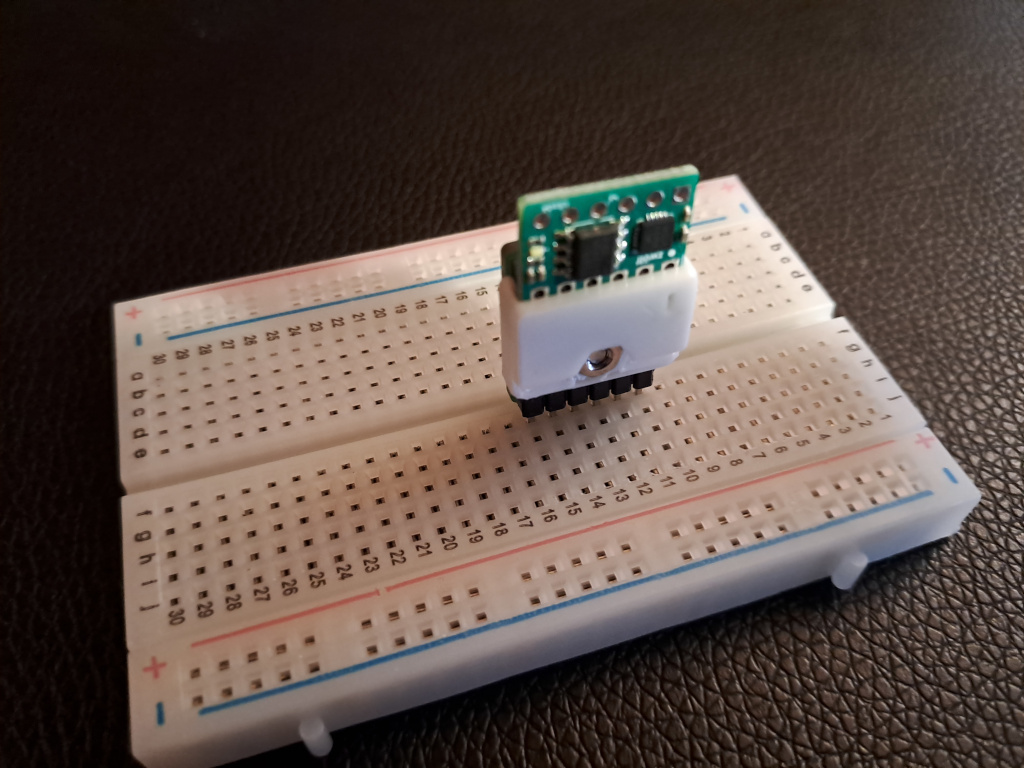

Wolfszahn is a Zwölf 6-pin spring contact to SIP adapter. With Wolfszahn (or Tunken) it’s possible to use Zwölf modules with a breadboard without having to solder headers directly to the module. Wolfszahn is also SMD-solderable and can be easily integrated into your own PCB designs.

Specifications

  • Zwölf 6-pin spring to SIP adapter
  • SMD pads on bottom allow SMD soldering
  • Includes 6P right-angle male header (unsoldered)

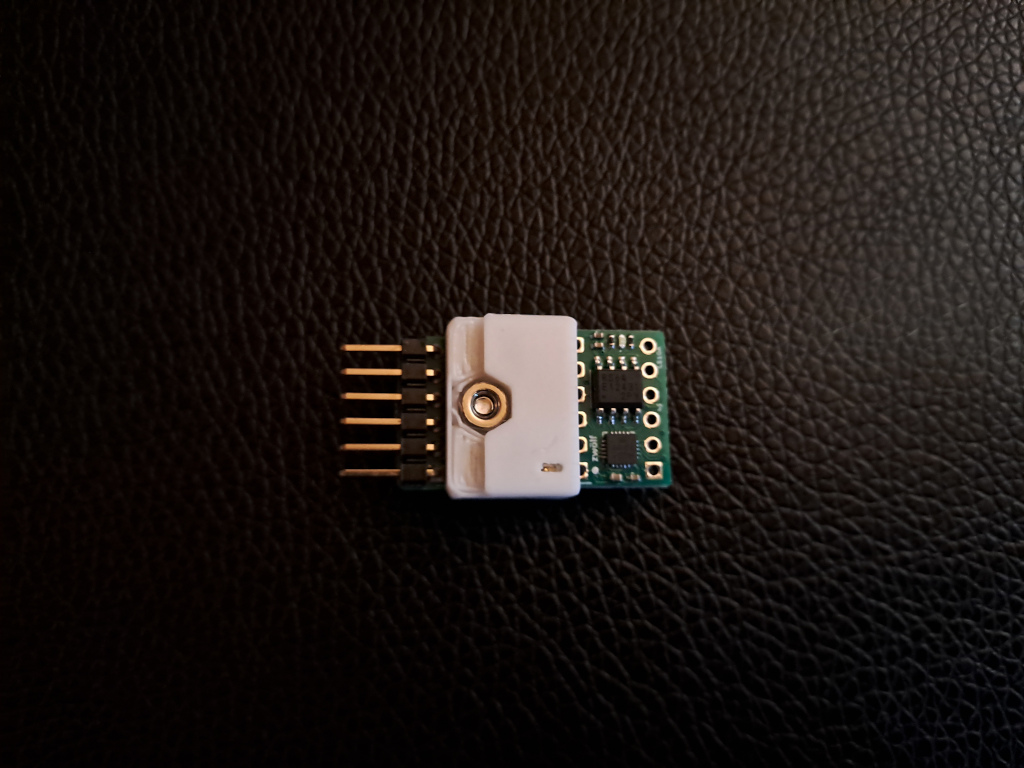

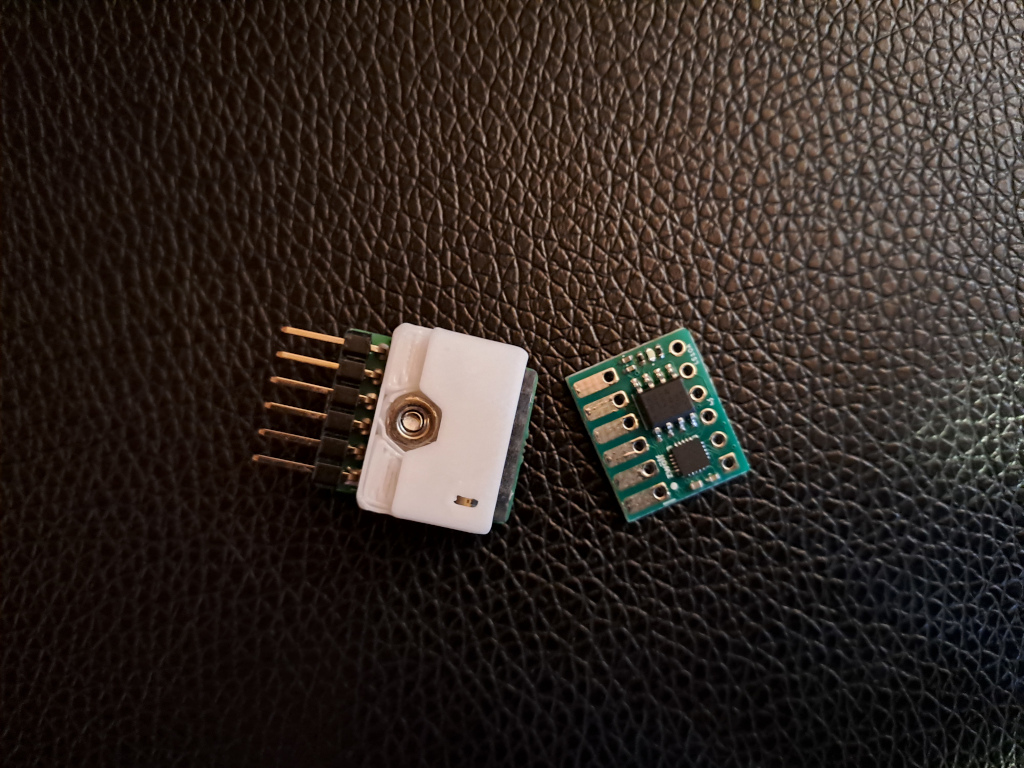

  • Includes 3D-printed socket housing used to insert/secure module
  • 16mm x 20mm board dimensions

Resources

  • Schematics, PCB layout and 3D-printable socket housing are available on GitHub
