Description

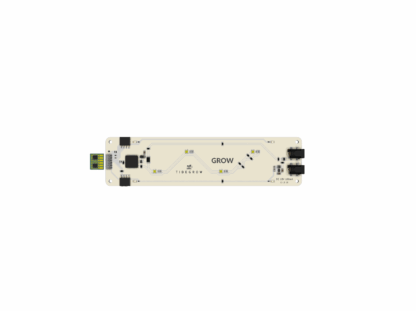

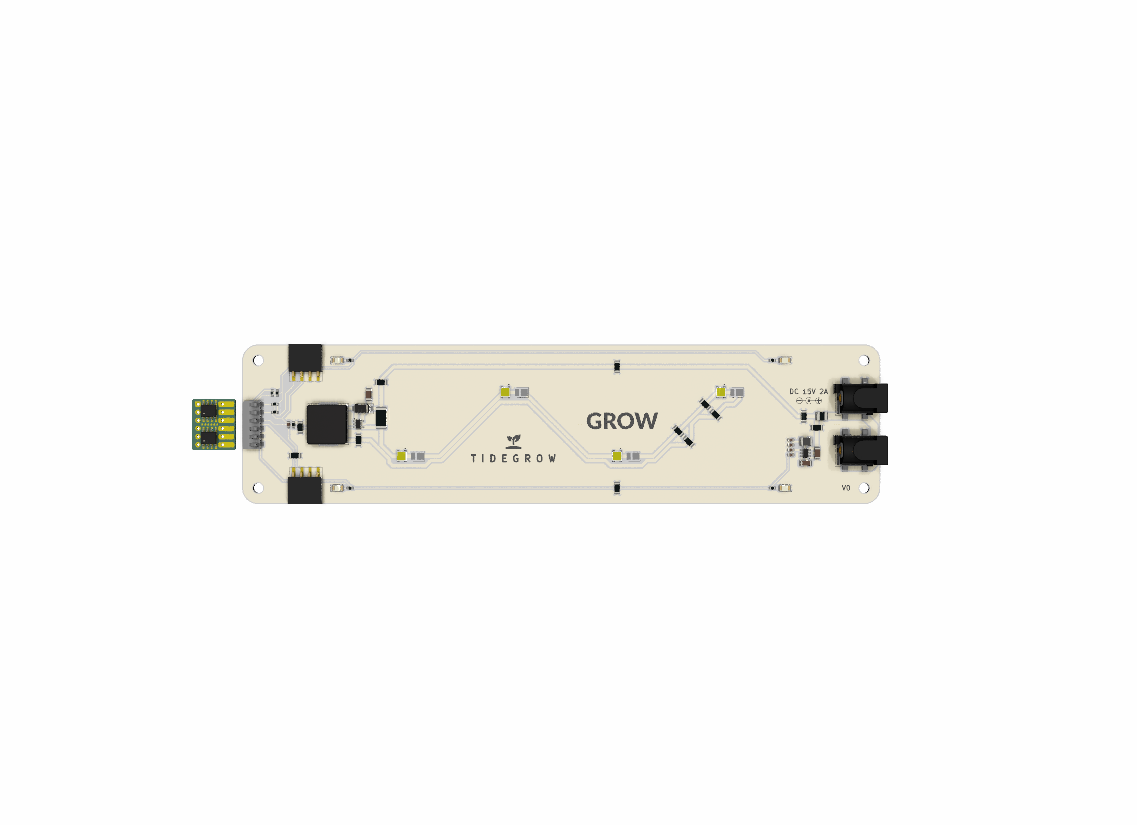

Grow is an experimental low-power (~1W) smart grow light module that can be chained to create customized panels.
Grow will be available in full-spectrum white (3500K) and deep-red (660nm) versions.
Grow can can be controlled autonomously, via I2C or with a WiFi controller (coming soon).
Grow is part of the Tidegrow project.
Currently available for reservation. Final appearance, specifications, pricing and features subject to change.
Specifications
- 4x 3500K LM301B LEDs or 4x 660nm 2835 LEDs
- 4x always-on green LEDs
- Constant current driver
- Temperature sensor
- I2C interface
- PWM dimming
- Zwölf socket (pre-programmed LS10 included)
- Two 2.5mm barrel jack sockets for power and chaining (DC 15V 2A, center positive)
- Two 4P 2.54mm sockets for optional I2C controller and chaining
- Aluminum PCB
- 200mm x 50mm board dimensions (V0)
Resources
- PCB, schematics, firmware and documentation will be made available on GitHub
