Description

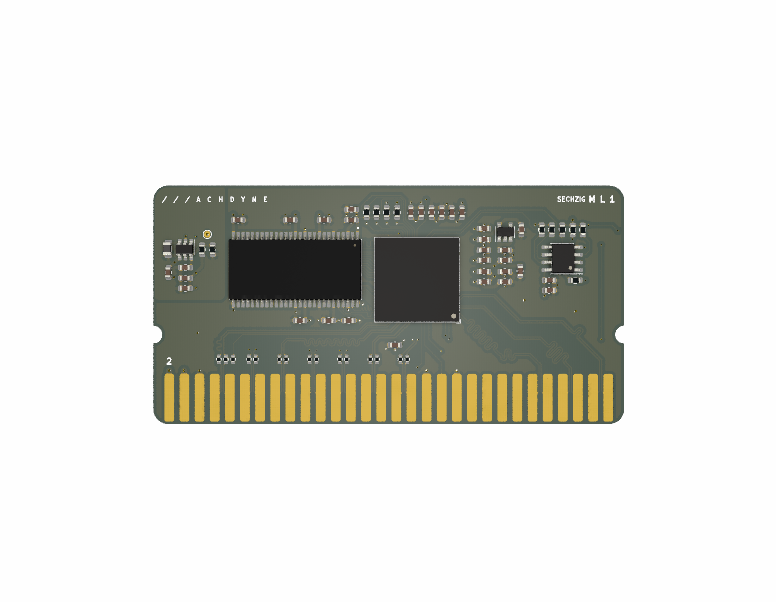

Sechzig ML1 is a Sechzig compute module for the Mozart (and other Sechzig-compatible) motherboards.
Specifications
- Sechzig Module
- Lattice ECP5 FPGA (LFE5U-45F)
- 44K LUTs
- 4 PLLs
- 32MB (256Mbit) 16-bit SDRAM
- 2MB (16Mbit) NOR flash
- 79mm x 40mm board dimensions (revision V2)
Features
- LiteX and Linux support
Resources
- See the Sechzig Github Repo for the latest technical details and schematics
Origin
- Designed in Germany
- PCB manufactured and assembled in Germany
- Tested, packaged and shipped from Germany
