Description

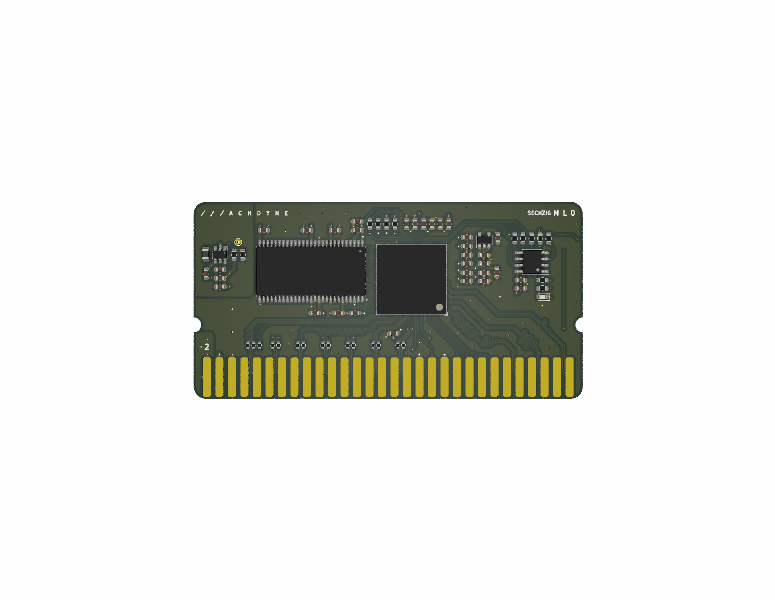

Sechzig ML0 is a Sechzig compute module for the Mozart (and other Sechzig-compatible) motherboards.
Specifications
- Sechzig Module
- Lattice ECP5 FPGA (LFE5U-25F or LFE5U-12F)
- 24K LUTs with open-source tools
- 2 PLLs
- 32MB (256Mbit) 16-bit SDRAM
- 4MB (32Mbit) NOR flash
- 79mm x 40mm board dimensions (revision V0)
Features
- Zeitlos support
Resources
- See the Sechzig Github Repo for the latest technical details and schematics
Origin
- Designed in Germany
- PCB manufactured and assembled in Germany
- Tested, packaged and shipped from Germany
