Description

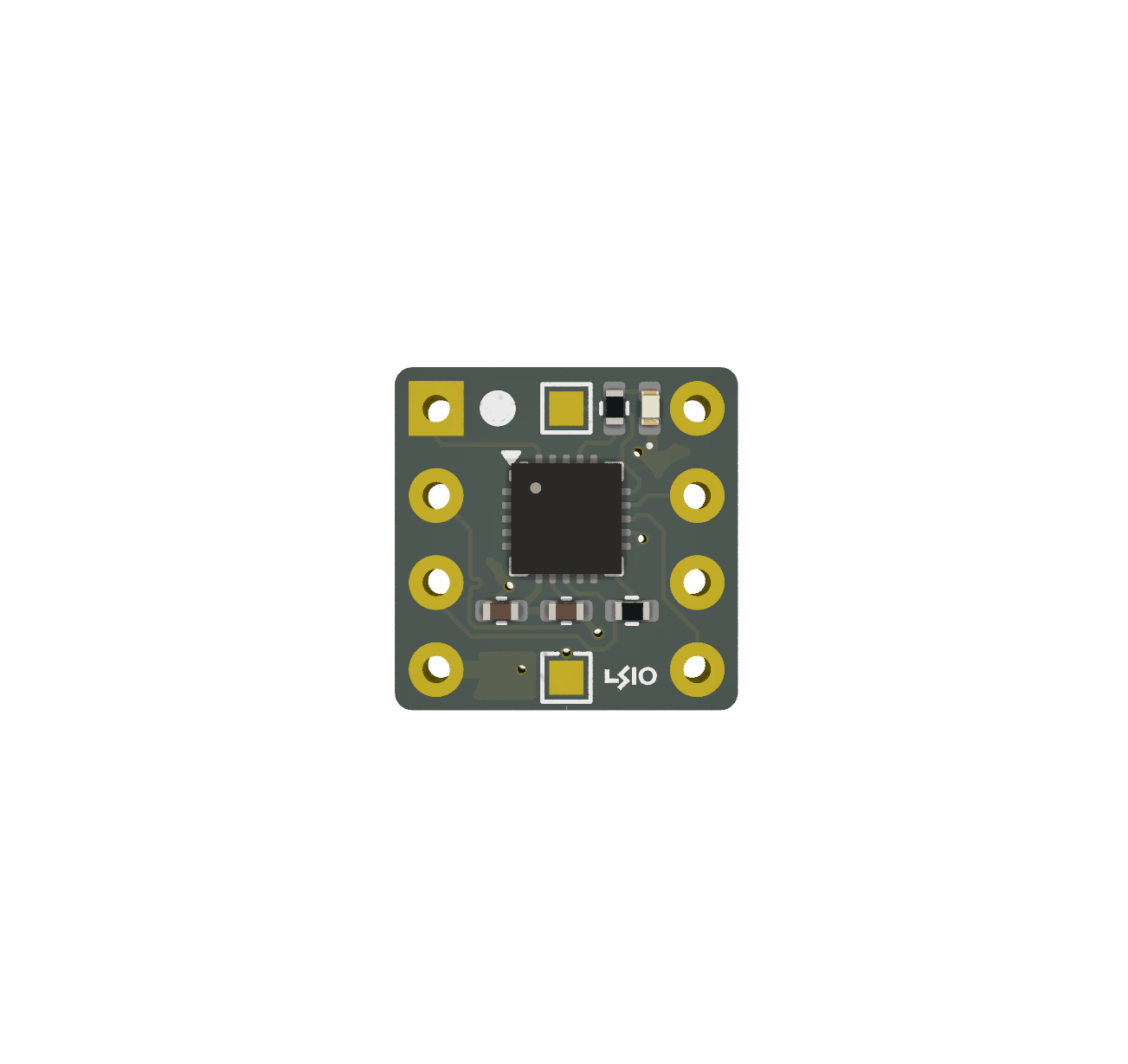

LSIO is a tiny multi-purpose I2C interface module.
Features
- DIP-8 footprint and SMD solderable
- Supports multiple interfaces
- I2C to UART
- I2C to USB-LS
- I2C to up to 4 GPIOs**
- Up to 4 modules can be used on the same I2C bus
- User-controllable status LED
- Two 4-pin headers included (unsoldered)
- 10mm x 10mm board dimensions
** A0-A1 have internal pull-ups. If these are used as GPIOs, they must be stable at power-up to select the I2C address.
