Description

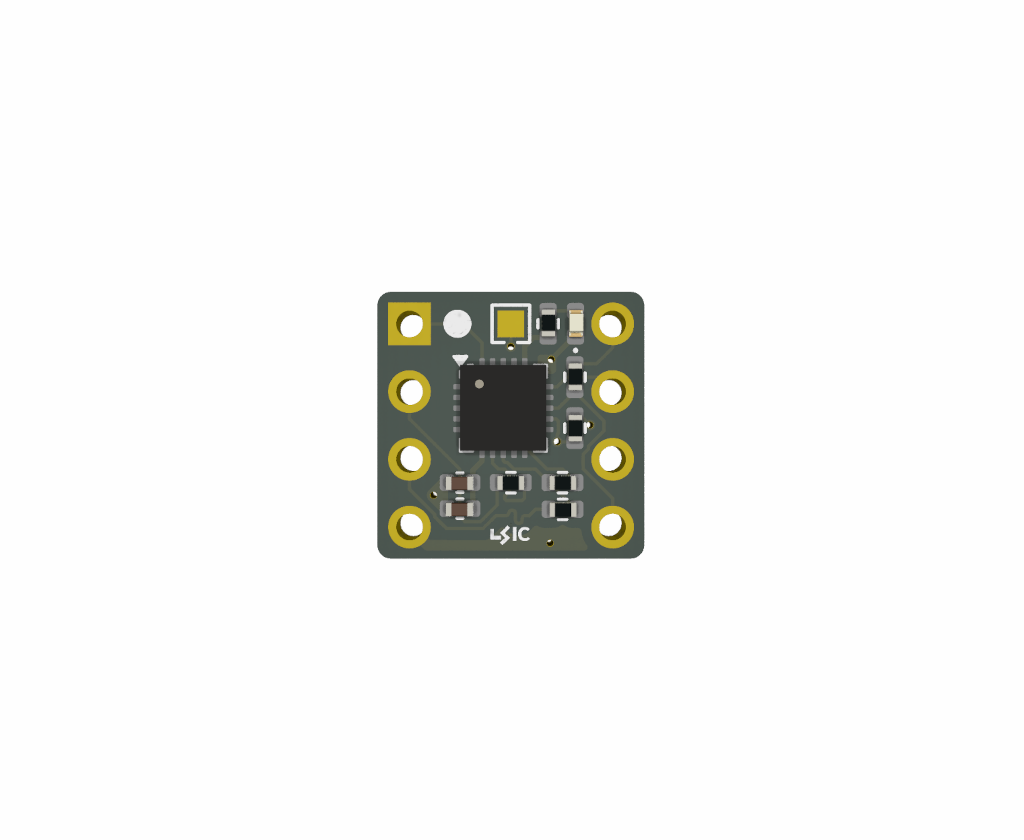

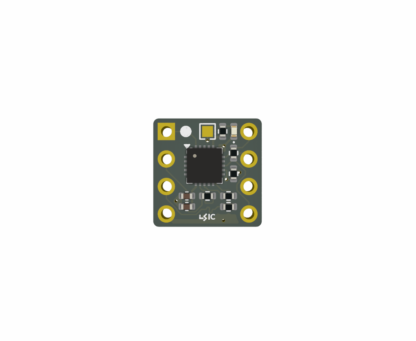

LSIC is a tiny I2C multi-protocol converter module. The default firmware allows you to read/write to a UART by sending I2C commands.
Features
- DIP-8 footprint and SMD solderable
- I2C slave interface
- Supports multiple interfaces
- I2C to UART
- I2C to USB-LS**
- I2C to up to 4 GPIOs**
- Up to 4** modules can be used on the same I2C bus
- User-controllable status LED
- Two 4-pin headers included (unsoldered)
- 10mm x 10mm board dimensions
** A0-A1 have internal pull-ups. If these are used as GPIOs, they must be stable at power-up to select the I2C address. May require firmware update.
