Description

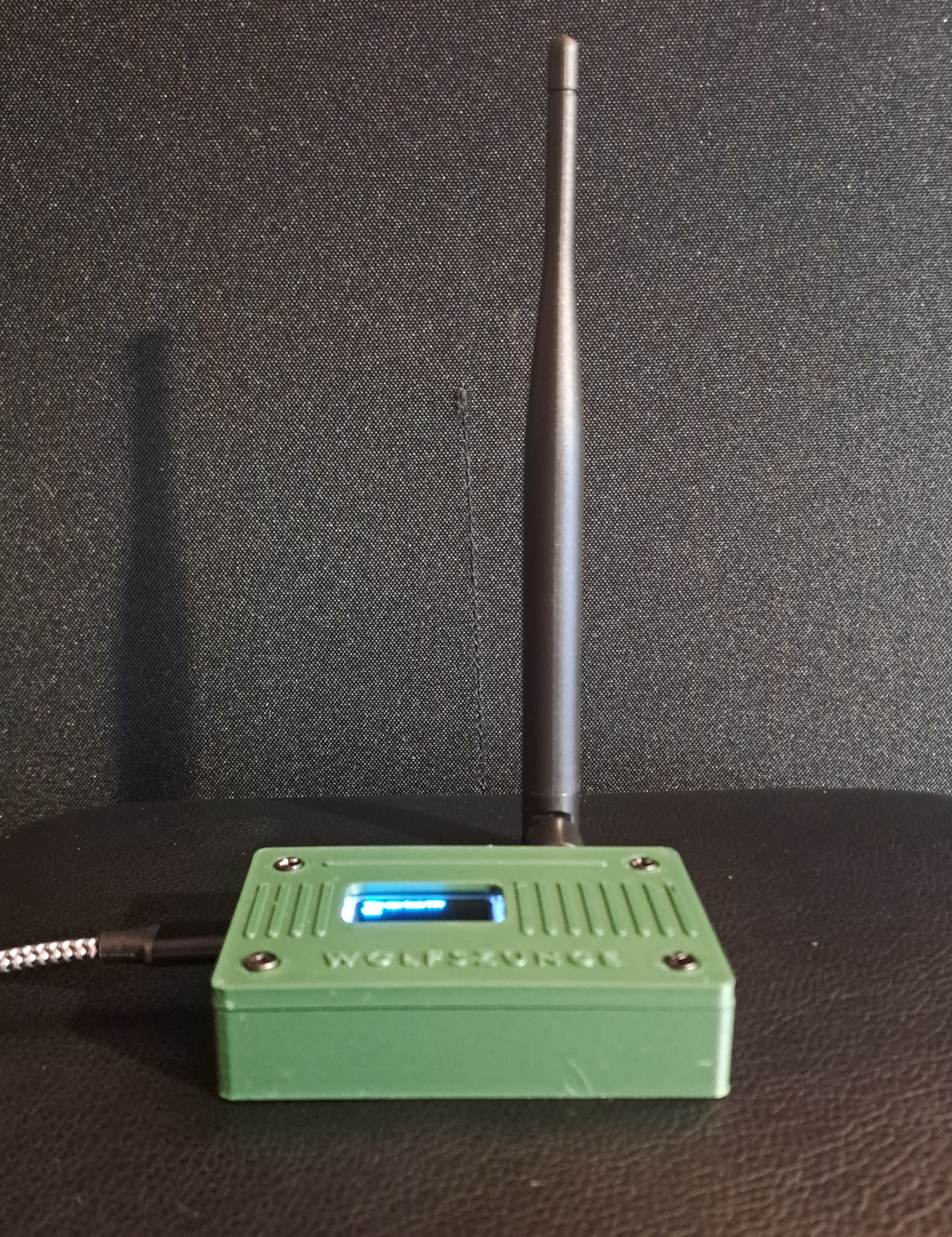

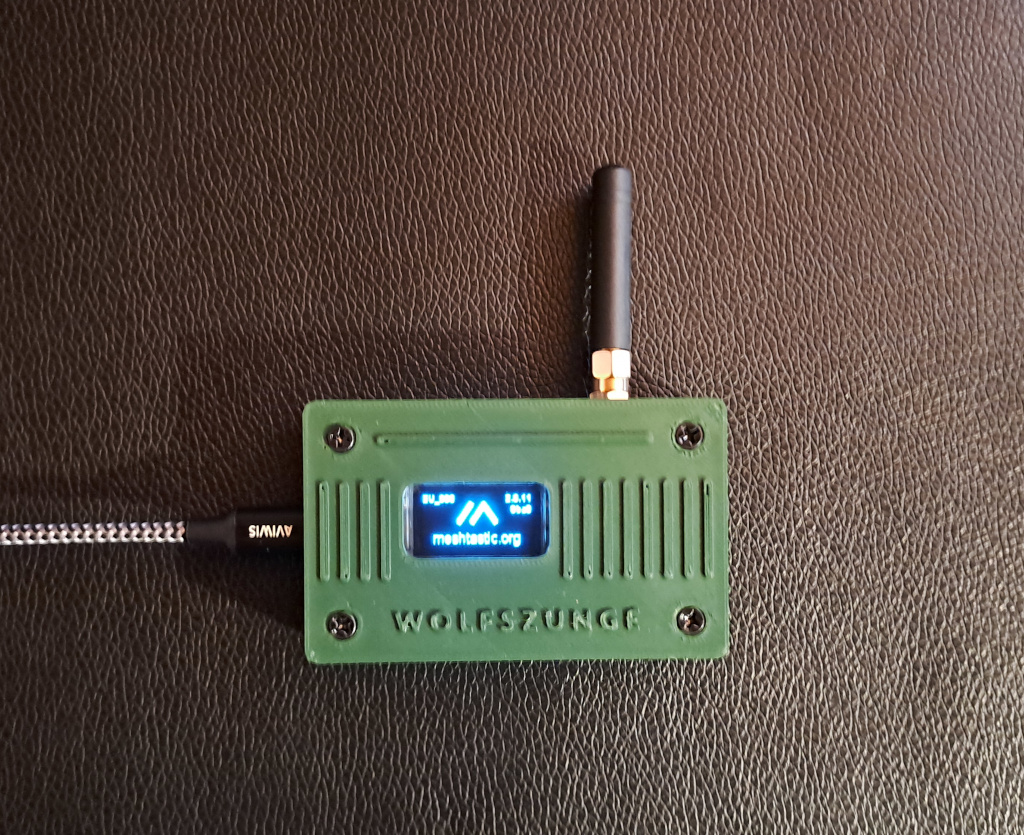

The Wolfszunge Radio Kit ships unassembled and contains everything necessary to set up a LoRa node connected to a computer. The kit can be assembled in about 5 minutes, no soldering required.
This kit is intended for 868MHz or 915MHz. Please contact us if you have other requirements.
This kit doesn’t include or require a battery, but instead relies on USB for power.
Note: The 3D-printable case is open-source so you can print and build these yourself.
Wolfszunge is now available on backorder. These orders are built on-demand and ship within 3 months (usually sooner). You can optionally specify custom case colors in the order notes. The default case color is dark olive green.
Features
- Long range radio for digital communications
- LoRa range record: 331km
- Practical range: 1km to 10km
- Speed: 0.3kb/s to 50kb/s
- Wi-Fi & Bluetooth
- Meshtastic firmware pre-installed
- USB-C for power/data
Components
- 3D-printed case
- Heltec LoRa 32 V3 board
- Two antennas (straight ~40mm, right angle ~170mm)
- USB-A to USB-C cable
Resources
- Instructions and the 3D-printable case are available on GitHub
- Meshtastic getting started
