Description

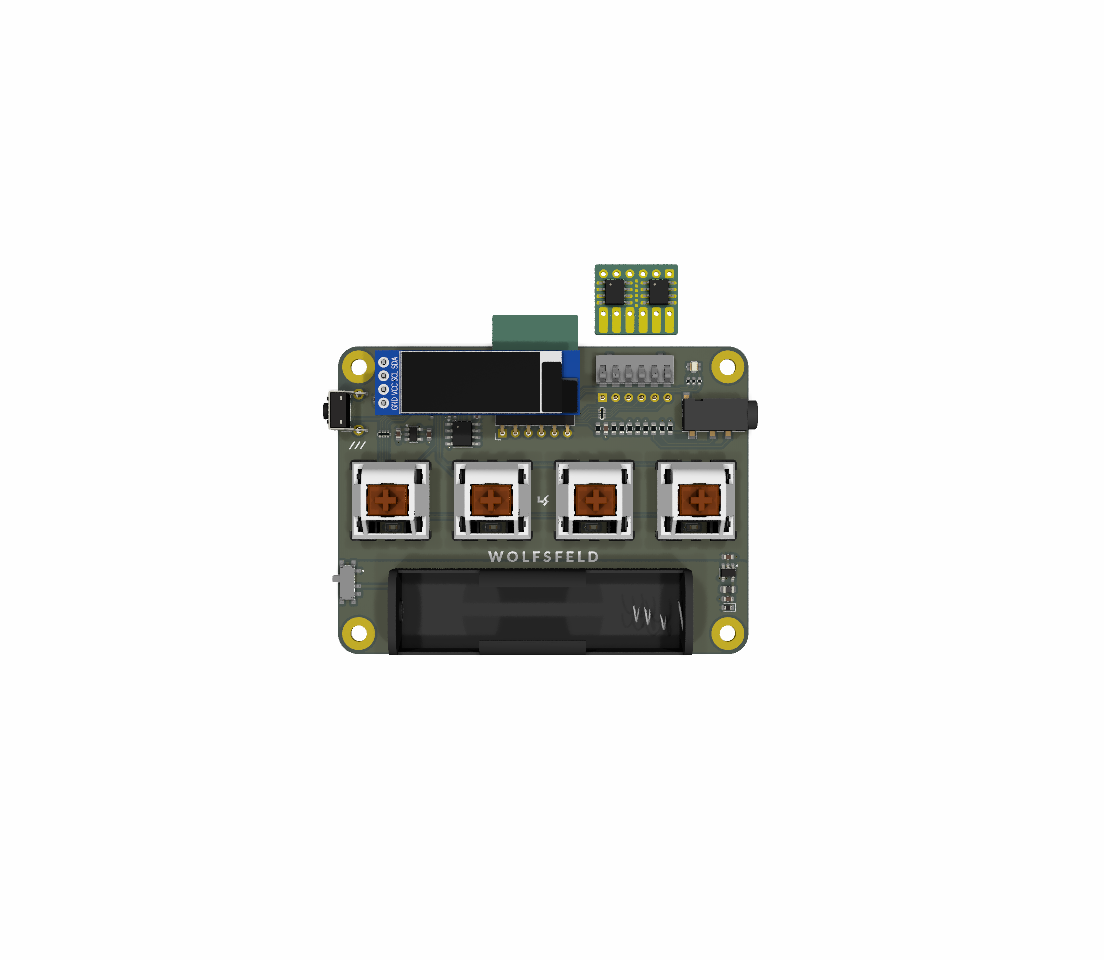

Wolfsfeld is an ultra-low-power stand-alone open-source handheld FPGA computer intended for educational purposes and survival computing.
Wolfsfeld is literally field programmable. Programs can be entered manually (or uploaded) into non-volatile F-RAM where they can be tested and then transferred onto separate Zwölf modules.
Wolfsfeld requires one AA battery (not included) of either 1.2V (NiMH) or 1.5V (alkaline).
The official firmware is still under development and Wolfsfeld is currently only recommended for FPGA developers who want to assist with the official firmware or implement a custom system.
Wolfsfeld is now available on backorder. These orders are built on-demand and ship within 3 months (usually sooner). You can optionally specify custom case colors in the order notes. The default case color is olive green.
Specifications
- Lattice ICE40UP5K FPGA (5280 LUTs, 120Kbits BRAM, 1024Kbits SPRAM, 1 PLL)
- 4MB (32Mbit) EEPROM (via included user-replaceable MMOD)
- 256KB (2Mbit) Ferroelectric RAM
- Lifespan: 95 years @ +55C, over 200 years @ +35C
- Endurance: 10^12 read/write cycles @ +85C
- User-replaceable OLED module (128×32 pixels) (included)
- 4 MX style switches
- 1 MMOD socket (6-pin)
- 1 MMOD/PMOD expansion socket (6-pin)
- 1 Zwölf socket (6-pin spring contact)
- 3.5mm TRRS jack
- 2 GPIOs for UART or I2C
- 4-bit DAC for composite video output
- RGB LED
- Power switch
- Reset / wake button

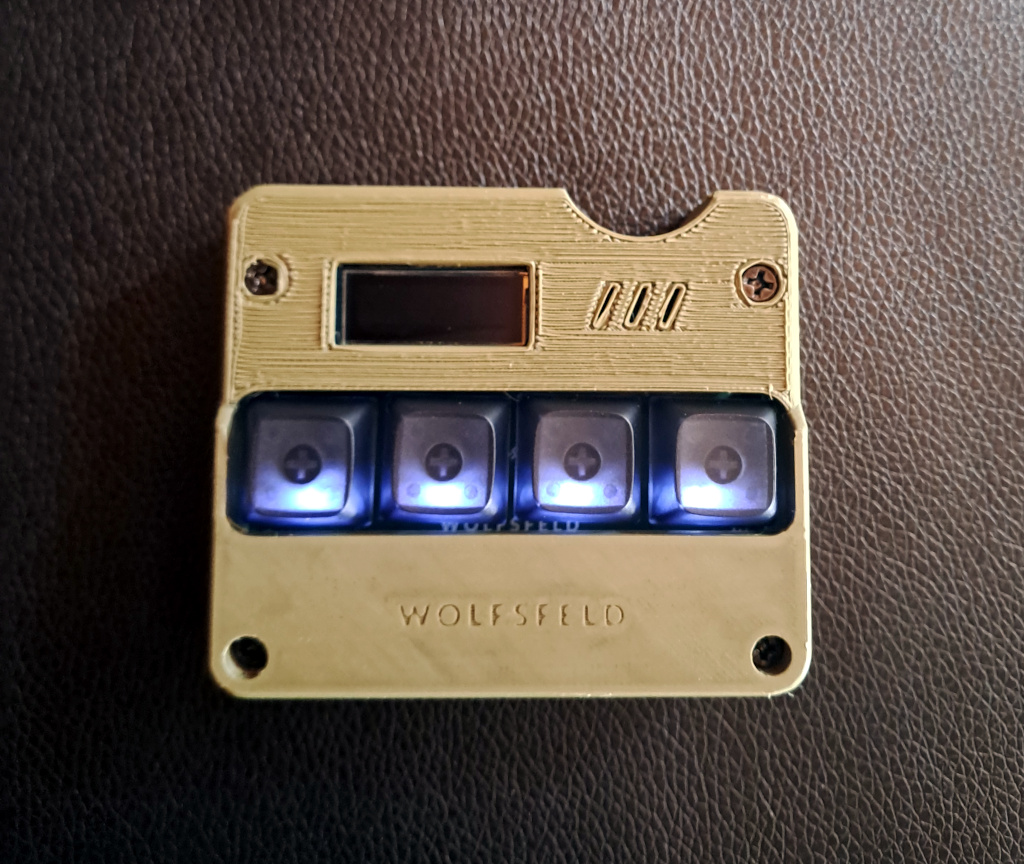

- 3D-printed PLA case
- Cases are printed in-house and may differ from the photo or have minor imperfections
- 80mm x 60mm board dimensions; 84mm x 72mm enclosure dimensions
Resources
- Open-source gateware, schematics and documentation will be made available on GitHub
Origin
- Designed in Germany
- PCB manufactured in Germany
- PCB hand-assembled in Germany
- Tested, packaged and shipped from Germany
