Description

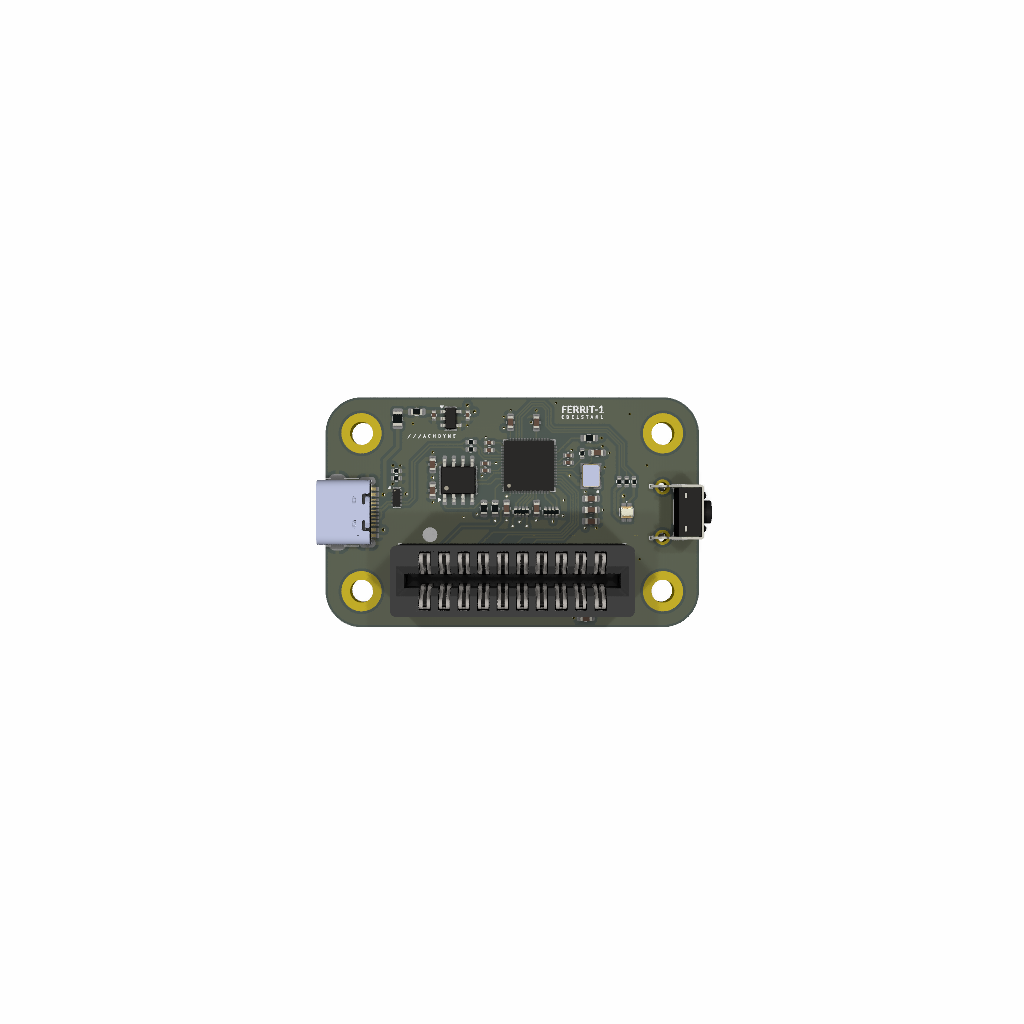

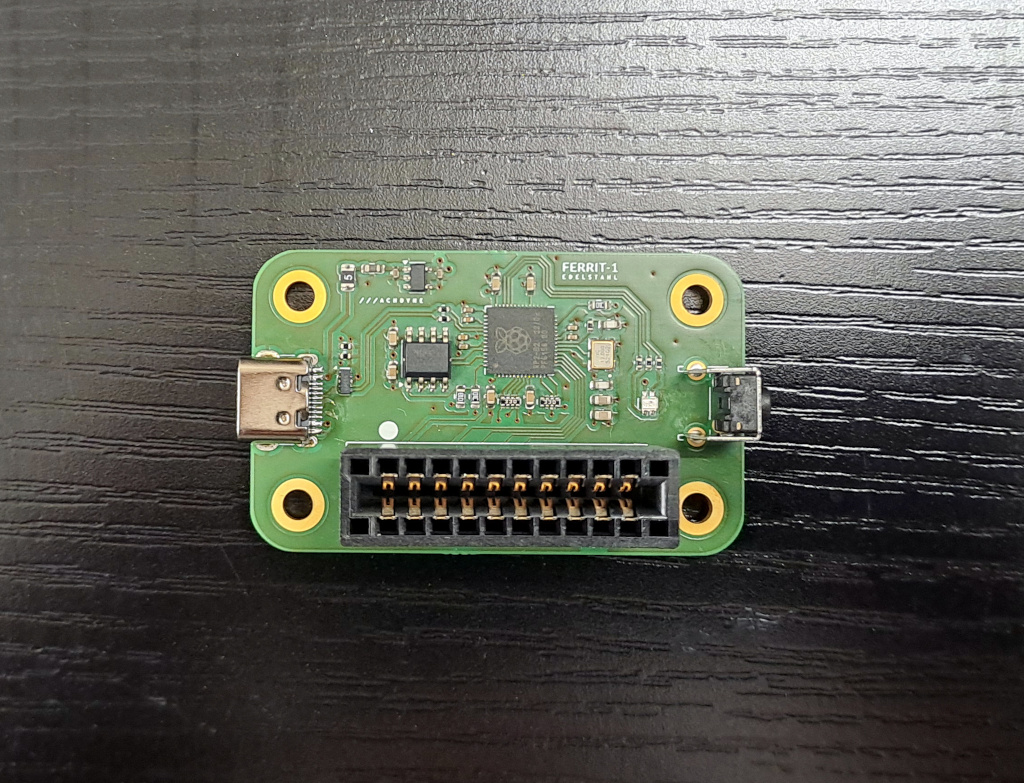

FERRIT-1 (aka Edelstahl) is a host board for a single FERRIT F-RAM module (sold separately).
Features
- USB-C port with USB-MSC interface
- Supports 8MB F-RAM when paired with a FERRIT-M8 memory module
- Supports up to 32MB F-RAM with future memory modules
- RP2040 MCU 32-bit MCU (Dual Cortex M0+, 264KB SRAM)
- 4MB (32Mbit) EEPROM for firmware
- Lifespan: 100 years @ +40C
- RGB LED
- Board dimensions: 52mm x 32mm
Use Cases
- Personal critical data archive system
- Offline secure storage
- Data logging and F-RAM development
Resources
- Schematics, firmware, documentation and 3D-printable case will be made available on GitHub
- Open-source archival management tool available on GitHub
Origin
- Designed in Germany
- PCB manufactured and assembled in Germany

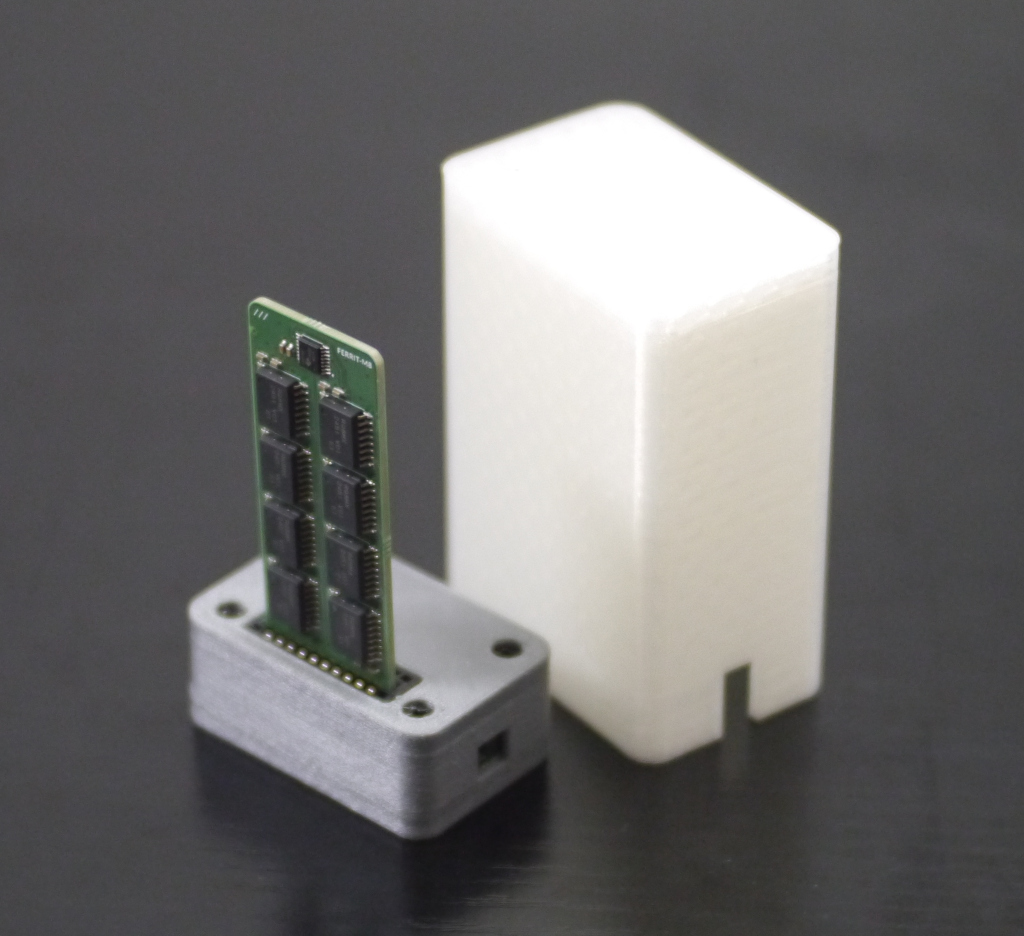

- PLA enclosure manufactured and assembled in Germany
- Tested, packaged and shipped from Germany
